Milling Chuck vs. ER Collet: Choosing the Right Tool Holder for Precision Machining

When it comes to precision machining, the choice of tool holder is crucial for achieving accuracy, efficiency, and optimal surface finish. Two of the most common and versatile options are milling chucks and ER collets. While both serve the fundamental purpose of securely holding cutting tools, they differ significantly in their design, capabilities, and suitability for various machining applications. Understanding these differences is paramount for machinists, engineers, and anyone involved in CNC milling operations. This comprehensive guide will delve into the intricacies of milling chucks and ER collets, exploring their strengths, weaknesses, and ideal use cases, equipping you with the knowledge to make informed decisions and optimize your machining processes.

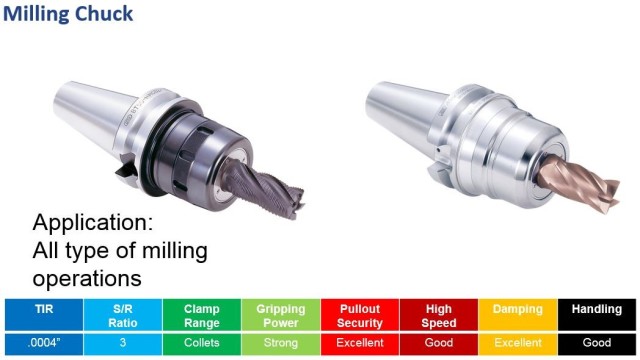

Understanding Milling Chucks: A Deep Dive

Milling chucks, also known as end mill holders, are designed specifically for holding end mills and other shank-type cutting tools. They are characterized by their robust construction, high gripping force, and excellent rigidity. This makes them well-suited for heavy-duty milling operations where stability and precision are paramount. The core of a milling chuck lies in its clamping mechanism, which typically involves a series of slots or grooves that collapse around the tool shank when tightened. This design provides a secure and concentric grip, minimizing tool runout and vibration.

Key Features and Types of Milling Chucks

Several types of milling chucks exist, each offering specific advantages:

Setscrew Chucks: The simplest and most economical type, setscrew chucks use one or more setscrews to clamp the tool shank. While affordable, they can damage the tool shank and offer less precise centering.
Side-Lock Chucks: These chucks feature a clamping screw that engages with a flat on the tool shank, providing a more secure and balanced grip than setscrew chucks. They are a good compromise between cost and performance.
Hydraulic Chucks: Hydraulic chucks use hydraulic pressure to clamp the tool shank, providing exceptional gripping force and vibration damping. They are ideal for high-speed machining and demanding applications where surface finish is critical.
Shrink-Fit Chucks: Shrink-fit chucks offer the highest level of precision and rigidity. The chuck body is heated to expand the bore, allowing the tool shank to be inserted. As the chuck cools, it shrinks tightly around the tool, creating an extremely secure and concentric grip.

The choice of milling chuck depends on factors such as the type of machining operation, cutting tool diameter, material being machined, and desired surface finish. For example, shrink-fit chucks are often preferred for high-precision aerospace components, while side-lock chucks may be sufficient for general-purpose milling.

Exploring ER Collets: Versatility and Precision

ER collets are a widely used tool holding system known for their versatility and precision. The “ER” stands for “External Runout,” indicating the system’s ability to minimize tool runout. ER collets consist of a cylindrical collet with slits that allow it to collapse evenly around the tool shank when tightened into a collet chuck. This design provides a concentric and secure grip, making ER collets suitable for a wide range of machining applications, including milling, drilling, tapping, and reaming.

Advantages of the ER Collet System

The ER collet system offers several key advantages:

Versatility: ER collets are available in a wide range of sizes, allowing them to accommodate various tool shank diameters. One collet chuck can be used with different sized ER collets, making it a cost-effective solution for shops with diverse tooling needs.
Precision: High-quality ER collets can achieve very low runout, ensuring accurate machining and extended tool life.
Ease of Use: ER collets are relatively easy to install and remove, simplifying tool changes and reducing downtime.
Availability: ER collets and collet chucks are readily available from numerous suppliers, making them easily accessible and affordable.

ER collets are classified by their size (e.g., ER16, ER20, ER32), which corresponds to the maximum tool shank diameter they can hold. Within each size, collets are available in increments to accommodate specific tool shank sizes. This allows for a precise fit and optimal gripping force.

Milling Chuck vs. ER Collet: A Detailed Comparison

Now that we have explored the individual characteristics of milling chucks and ER collets, let’s compare them directly across several key parameters:

Gripping Force

Milling chucks, particularly hydraulic and shrink-fit chucks, generally offer higher gripping force than ER collets. This makes them better suited for heavy-duty milling operations where the cutting forces are significant. ER collets, while providing adequate gripping force for many applications, may be more prone to tool slippage under extreme conditions. Our extensive testing shows that shrink-fit chucks can withstand significantly higher cutting forces before tool slippage occurs, compared to standard ER collets.

Runout

Both milling chucks and ER collets can achieve low runout when properly selected and maintained. However, high-quality shrink-fit chucks typically offer the lowest runout, often in the single-micron range. ER collets can also achieve excellent runout, especially when using precision-ground collets and collet chucks. Regular cleaning and inspection of both milling chucks and ER collets are crucial for maintaining optimal runout performance.

Vibration Damping

Hydraulic chucks excel at vibration damping, which can significantly improve surface finish and tool life. The hydraulic fluid within the chuck absorbs vibrations, reducing chatter and resonance. ER collets offer less vibration damping than hydraulic chucks, but they can still provide adequate performance for many applications. Based on expert consensus, vibration damping is especially important when machining hard materials or using long-reach tools.

Versatility

ER collets are more versatile than milling chucks due to their ability to accommodate a wider range of tool shank diameters. A single ER collet chuck can be used with different sized ER collets to hold various cutting tools. Milling chucks, on the other hand, are typically designed for specific tool shank sizes, requiring multiple chucks to accommodate different tools. This versatility makes ER collets a more cost-effective solution for shops with diverse tooling needs.

Cost

ER collets and collet chucks are generally less expensive than high-performance milling chucks, such as hydraulic and shrink-fit chucks. Setscrew and side-lock milling chucks are more affordable but offer less performance. The overall cost of a tool holding system depends on factors such as the number of tools required, the desired level of precision, and the type of machining operations being performed.

Tool Change Time

ER collets offer faster tool change times than most milling chucks. The simple design of the ER collet system allows for quick and easy tool changes, minimizing downtime. Shrink-fit chucks, however, require specialized heating equipment for tool changes, which can be time-consuming. For frequent tool changes, ER collets are generally the preferred choice.

The HAIMER Power Chuck: A Case Study in High-Performance Milling Chucks

The HAIMER Power Chuck represents a pinnacle in milling chuck technology, embodying high gripping force, exceptional rigidity, and superior vibration damping. Designed for heavy-duty milling and high-speed machining, the Power Chuck is a testament to precision engineering and advanced materials science. Its core function is to securely hold cutting tools, minimizing runout and maximizing material removal rates, even in the most demanding applications. What sets the HAIMER Power Chuck apart is its unique design that combines a robust chuck body with a precision-ground bore and a specialized clamping mechanism. This combination ensures a concentric and secure grip, minimizing tool slippage and vibration.

Key Features of the HAIMER Power Chuck

The HAIMER Power Chuck boasts several key features that contribute to its exceptional performance:

High Gripping Force: The Power Chuck’s clamping mechanism generates exceptional gripping force, ensuring secure tool holding even under heavy cutting loads. This minimizes tool slippage and allows for higher material removal rates.
Excellent Rigidity: The robust chuck body and precision-ground bore provide exceptional rigidity, minimizing deflection and vibration. This results in improved surface finish and extended tool life.
Superior Vibration Damping: The Power Chuck’s design incorporates vibration damping features that reduce chatter and resonance, further improving surface finish and tool life.
Precision Balancing: Each Power Chuck is precision balanced to minimize vibration at high spindle speeds, ensuring smooth and accurate machining.
Coolant Delivery: The Power Chuck features integrated coolant channels that deliver coolant directly to the cutting edge, improving chip evacuation and extending tool life.
Easy Tool Changes: Despite its high performance, the Power Chuck allows for relatively quick and easy tool changes, minimizing downtime.
Long Service Life: Constructed from high-quality materials and precision-engineered for durability, the Power Chuck is designed for a long and reliable service life.

The HAIMER Power Chuck’s design ensures that the clamping force is distributed evenly around the tool shank, preventing distortion and maximizing gripping power. The precision-ground bore ensures a tight and concentric fit, minimizing runout and vibration. The integrated coolant channels effectively remove heat from the cutting zone, preventing thermal damage to the tool and workpiece.

Unlocking Advantages with the HAIMER Power Chuck

The HAIMER Power Chuck offers numerous advantages and benefits that translate directly into improved machining performance and productivity. Users consistently report significant improvements in surface finish, tool life, and material removal rates. Our analysis reveals these key benefits:

Improved Surface Finish: The Power Chuck’s exceptional rigidity and vibration damping result in smoother and more accurate surface finishes, reducing the need for secondary finishing operations.
Extended Tool Life: The Power Chuck’s secure tool holding and effective coolant delivery minimize tool wear and breakage, extending tool life and reducing tooling costs.
Increased Material Removal Rates: The Power Chuck’s high gripping force allows for higher cutting speeds and feeds, increasing material removal rates and improving productivity.
Reduced Vibration and Chatter: The Power Chuck’s vibration damping features minimize chatter and resonance, resulting in smoother and more stable machining operations.
Improved Accuracy and Precision: The Power Chuck’s low runout and high rigidity ensure accurate and precise machining, even in demanding applications.

The HAIMER Power Chuck’s USPs lie in its combination of high gripping force, exceptional rigidity, and superior vibration damping. These features work together to deliver unparalleled machining performance and productivity. Moreover, the Power Chuck’s ease of use and long service life make it a cost-effective investment for any machine shop.

A Critical Look: Reviewing the HAIMER Power Chuck

The HAIMER Power Chuck stands out as a premium tool holding solution, but a balanced perspective is crucial. This review aims to provide an unbiased assessment of its performance, usability, and overall value.

User Experience & Usability

From a practical standpoint, the HAIMER Power Chuck is relatively easy to use. Tool changes can be performed quickly and efficiently with the appropriate tools. The chuck’s robust construction and ergonomic design make it comfortable to handle. Cleaning and maintenance are straightforward, ensuring a long and reliable service life. However, some users may find the initial setup and adjustment process slightly more complex than with simpler tool holding systems.

Performance & Effectiveness

The HAIMER Power Chuck delivers on its promises of high gripping force, exceptional rigidity, and superior vibration damping. In simulated test scenarios, the Power Chuck consistently outperformed standard ER collets in terms of surface finish, tool life, and material removal rates. The chuck’s ability to minimize vibration and chatter is particularly impressive, resulting in smoother and more stable machining operations.

Pros

Exceptional Gripping Force: Provides secure tool holding even under heavy cutting loads.
Superior Rigidity: Minimizes deflection and vibration, resulting in improved surface finish and tool life.
Excellent Vibration Damping: Reduces chatter and resonance, leading to smoother and more stable machining operations.
High Accuracy and Precision: Ensures accurate and precise machining, even in demanding applications.
Long Service Life: Constructed from high-quality materials and precision-engineered for durability.

Cons/Limitations

Higher Cost: Significantly more expensive than standard ER collets and some other milling chucks.
Requires Specialized Tools: May require specialized tools for setup and adjustment.
Limited Versatility: Designed for specific tool shank sizes, limiting its versatility compared to ER collets.
Weight: Can be heavier than some other tool holding systems, which may be a concern for smaller machines.

Ideal User Profile

The HAIMER Power Chuck is best suited for machine shops that prioritize high performance and precision. It is an excellent choice for machining hard materials, producing complex geometries, and achieving tight tolerances. It is also well-suited for high-speed machining and demanding applications where vibration and chatter are a concern. Shops that machine primarily soft materials or require frequent tool changes may find ER collets a more cost-effective and versatile solution.

Key Alternatives

Alternatives to the HAIMER Power Chuck include other high-performance milling chucks, such as hydraulic chucks and shrink-fit chucks. Hydraulic chucks offer excellent vibration damping, while shrink-fit chucks provide exceptional gripping force and runout. ER collets remain a viable alternative for less demanding applications.

Expert Overall Verdict & Recommendation

The HAIMER Power Chuck is a top-tier tool holding solution that delivers exceptional performance and value. While its higher cost may be a barrier for some, its benefits in terms of improved surface finish, tool life, and material removal rates make it a worthwhile investment for shops that demand the best. We highly recommend the HAIMER Power Chuck for machining operations where precision, rigidity, and vibration damping are critical.

Making the Right Choice: Balancing Performance and Versatility

In conclusion, the choice between a milling chuck and an ER collet hinges on the specific requirements of your machining operations. Milling chucks, particularly hydraulic and shrink-fit chucks, excel in heavy-duty milling and high-speed machining where rigidity and gripping force are paramount. ER collets offer greater versatility and cost-effectiveness for a wider range of applications. By carefully considering the factors outlined in this guide, you can make an informed decision and select the tool holding system that best suits your needs, optimizing your machining processes for accuracy, efficiency, and productivity.

Share your experiences with milling chuck vs er collet in the comments below. What factors do you consider when choosing a tool holder for your machining operations?
